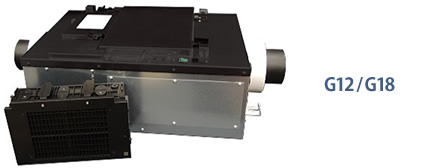

Electronic Air Cleaner for Outdoor Air intake

Shut out polluted air including Pollen, PM2.5, Haze etc!

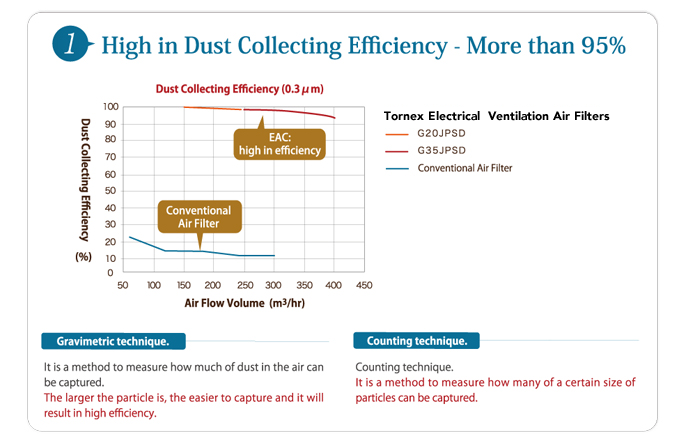

  • 95% efficiency against 0.3μm size of particulate
  • Energy saving performance Only JPY9.5円 ※ for 24 hours operation.
  • Strong sucking power No filter clogging!
  • Washable and reusable Environmentally friendly.
  • No DIY washing procedure. Secured after-service by Tornex.(annual contract basis)

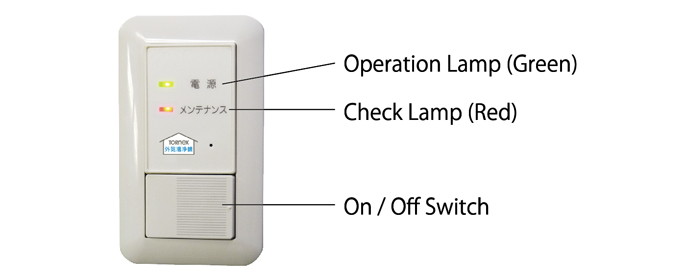

Wall mount Switch

  • For safety feature, the electricity to this equipment will be shut off if the proper after-service is not prosecuted one year after operation / after-service.
  • Do NOT turn off this equipment except after-service, typhoon, snowstorm, thick hog etc.

G35 : 30Pa, G20 : 20Pa *at rating air volume

Pressure Drop

pro02_11

  • This product is a filtering system for the outdoor air intake by Electronic Air Cleaner.
  • PM2.5 particles are air pollutants with a diameter of 2.5 micrometers or less.
  • Removal of particles with its diameter smaller than 0.3 micrometers are not confirmed yet for this system.

Specifications

MODEL G35JPSD G20JPSD
External  Dimensions Width 1090mm 960mm
Depth 362mm 362mm
Hight 346mm 346mm
Weight 26kg 25kg
Voltage AC100V 50/60Hz AC100V 50/60Hz
Electrical consumption  Approx. 11 W/11W
Rating air volume 350m³/hr 200m³/hr
Rating pressure drop 30Pa 20Pa
Pre-filter SUS 24 mesh
Main filter Electrostatic Precipitator
Material / Colour Steel / Power coating Black
Installations Refer to the installation manual
Temperature Environment Passing air temperature : -15 ~ 40℃
Ambient air temperature : 0 ~ 40℃
