Odour Removal System

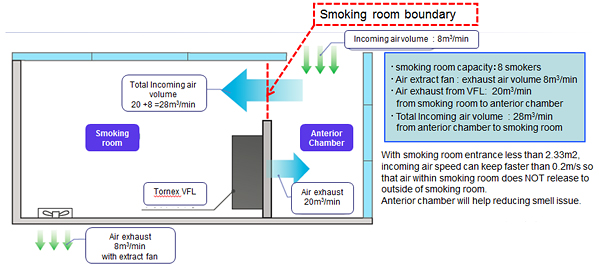

Almost non-smell purified air released to outside of smoking room so that fresh air will come into the smoking room
*0.2m/s incoming fresh air with entrance dimensions less than 1.66m²
Anterior chamber will help minimizing smell issue. Purified air will NOT be directly released to the public so that even slight sense of smell may not be detected. In addition, less smoky air reeking by smokers’ comings and goings.

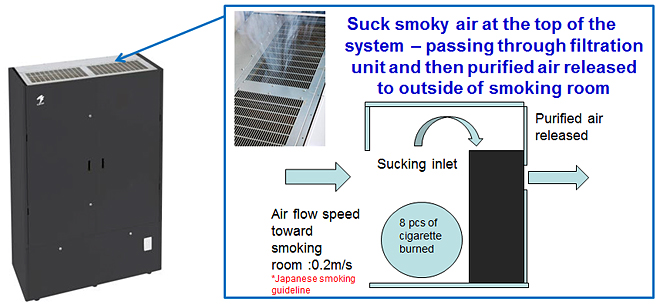

PLASMA DUST COLLECTING and ODOR REMOVAL SYSTEM
|Dust Collecting Efficiency
（Counting method 0.3μm）
|Air flow volume (m³/min)||H:23, L:20|
|Power supply||AC220V 50/60Hz|
|Power consumption||High:approx. 390W
|Main filter||ESP + Quasi-HEPA filter|
|Odor filter||Activated Charcoal|

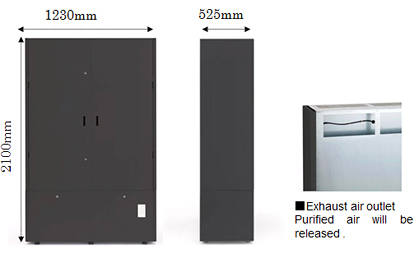

|External dimensions||W 1,230mm x D 525mm x H 2,100mm|
- Sustainable high odor removal efficiency 92% (one-pass) even after 12,000 pcs of cigarette burned. Odor concentration level is below 13!
- Very low power consumption
