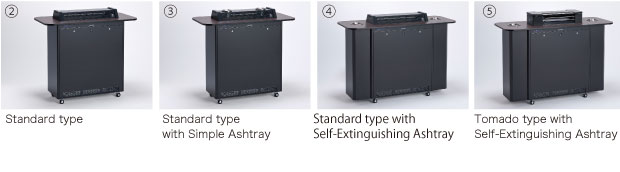

Single High Counter

The Tornex Single Counter uses direct absorption to collect smoky air before passing it through the three stage filtration system and returning it to atmosphere as clean air.




Size/Weight s_1 s_2
s_3 s_4
s_5 s_6
Capacity 4 smokers
Air Flow Volume (m³/min) H : 15  L : 10
Power Supply AC220-240V 50/60Hz
Power Consumption Approx 120W / Approx 150W
Dust Collecting Efficiency 95% (0.3μm)
Main Filter ESP (Electrostatic Precipitator)
Pre-Filter SUS24 Mesh
Odour Filter Activated Charcoal
Sanitization PCI (Plasmacluster Ion)

All Tornex installations require regular maintenance for optimum efficiency. Tornex recommend a full after-sales service contract.
