Unit 15

All the functions required of a smoke control device are packaged into this one unit which can be designed to your specifications.

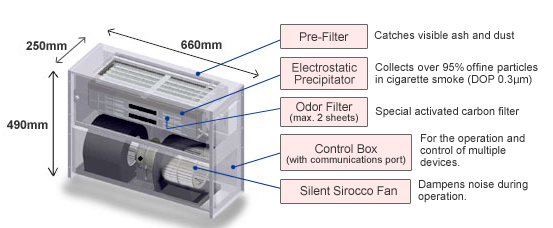

Compact size at 660 X 490 X 250 mm with an air flow volume of 15m³/min (comparable efficiency to regular smoke control units)
Highly scalable as Unit 15 can be combined with TORNEX control systems or communications systems.

We can cater to your specific requirements.

Unit 15 can be setup anywhere you like to suit the layout of your designated smoking areas and usage requirements. We can suggest and build products that will meet your requirements, especially if you were not satisfied with the size and shape of existing smoke control systems.

The Electrostatic Precipitator has the same dust-collecting capacity as regular-sized smoke control units.
The odor filter comes with an optional high-performance filter attachment for aldehydes.
Compatible with TORNEX’s latest control systems.
High-performance silent sirocco fan that has an air flow volume of 15m3/min.
Perfect for users who have not been happy with the size or shape of existing products.
Unit-style air purifier that blends in with furniture.

Capacity	4 smokers
Air flow volume (m³/min)	H: 15, L: 10
Power	AC220-240V 50/60Hz
Power Consumption (W)	Approx. 145 / 200
Dust collecting Efficiency	95% (0.3μm)
Main Filter	ESP (Electrostatic Precipitator)
Pre-Filter	SUS 24 mesh
Odour filter	Activated Charcoal
Sanitization	Plasmacluster Ion
External Dimensions (mm)	W660 × D250 × H490
Weight (kgs)	27

Reception counter model

Size	Width : 1500mm
	Depth : 700mm
	Height : 400mm
Weight	Approx 90Kg
Dust Collecting Efficiency	DOP (0.3μm) 95％
Air Flow Volume	H : 30m³/min
	M : 26m³/min
	L : 20m³/min
Pre-Filter	SUS24 Mesh+Urethane Foam
Main Filter	ESP (Electrostatic Precipitator)
Odour Filter	Activated Charcoal

Verandah model

Size	Width : 720mm
	Depth : 310mm
	Height : 870mm
Weight	Approx 60Kg
Dust Collecting Efficiency	DOP (0.3μm) 95％
Air Flow Volume	H : 15m³/min
	M : 13m³/min
	L : 10m³/min
Pre-Filter	SUS24 Mesh+Urethane Foam
Main Filter	ESP (Electrostatic Precipitator)
Odour Filter	Activated Charcoal
